Citric Acid Passivation Case Study

Citric Acid Passivation




Stainless steel derives its corrosion resistant properties from its chromium content. The chromium, in the presence of air, especially oxygen, forms a thin, hard adherent film of chromium oxide on the surface of the alloy. It is this chromic oxide layer that is inert (passive) to the surrounding environment and gives stainless steel its corrosion resistant properties.


Passivation, according the ASTM A380, is "the removal of exogenous iron or iron compounds from the surface of stainless steel by means of a chemical dissolution, most typically by a treatment with an acid solution that will remove the surface contamination, but will not significantly affect the stainless steel itself.” ASTM A380 also describes passivation as “the chemical treatment of stainless steel with a mild oxidant, such as a nitric acid solution, for the purpose of enhancing the spontaneous formation of the protective passive film."


Simply stated, utilizing a mild oxidant, such as a mineral or organic acid solution, to promote the removal of excess iron from the surface of the stainless steel will enhance the formation of a chromic oxide layer thereby enhancing its corrosion resistant properties.


Typically, passivation is performed with a nitric acid bath from 20 to 50% by volume. Temperatures range from ambient to 160 degrees F. Immersion times can be as long as two hours and even include the addition of a chromate salt. Nitric acid is by far the most accepted means by which passivation is performed. Recently, however, there has been an increase in the amount of industries that have successfully implemented citric acid into their passivation procedures.


Citric acid is an organic acid unlike nitric which is a mineral acid. It reacts with the iron much better than nitric and does not attack elements in stainless steel alloy which nitric acid does. And citric acid, overall, is a less harmful chemical than nitric acid. Nitric acid raises problems with environmental disposal, health and safety, environmental pollution, increased environmental liability and regulation, and overall complexity to utilize it. Citric acid on the other hand is derived from oranges, utilized in food and beverage products, is acceptable in some instances to go right to drain, depending upon contaminants and local environmental regulations, and much more friendlier when it comes to worker health and safety.


Even the process aspect of citric acid passivation is easier. Stainless steel must be cleaned prior to any passivation procedure. All surfaces contaminated with oil, grease, chips, grinding dust, lapping compound, buffing compound, coolant, and/or swarf must be removed.


For more information on this and other passivation system call us at 800-944-3289.

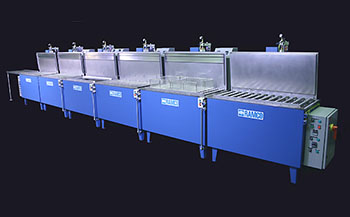

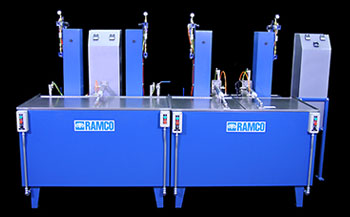

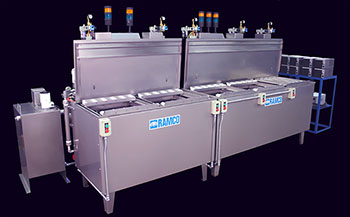

Above are three different citric acid passivation systems designed and built at RAMCO. The lines were developed based on the batch load size/weight, cleanliness level of the parts prior to passivation, and the required throughput per hour.
